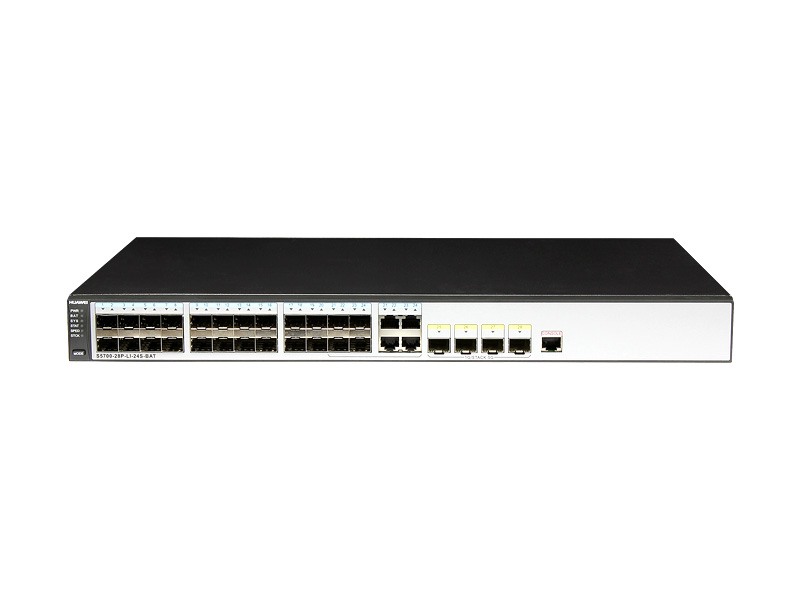

Характеристики: Коммутатор Huawei [S5700-28P-LI-24S-4AH]
Item | S5700-28P-LI-BAT S5700-28P-LI-4AH S5700-28P-LI-24S-BAT S5700-28P-LI-24S-4AH |
---|---|
Fixed Ports | S5700-10P-LI-AC/S5700-10P-PWR-LI-AC: 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports S5700-28P-LI-AC/S5700-28P-PWR-LI/ S5700-28P-LI-BAT/S5700-28P-LI-4AH: 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports S5700-52P-LI-AC/S5700-52P-PWR-LI: 48 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports S5700-28X-LI*/S5700-28X-PWR-LI-AC/ S5701-28X-LI-AC: 24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports S5700-52X-LI*/S5700-52X-PWR-LI-AC: 48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports S5700-28X-LI-24S/ S5701-28X-LI-24S-AC: 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports S5700-28P-LI-24S-BAT S5700-28P-LI-24S-4AH: 28 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports S5700-52X-LI-48CS-AC: 48 x GE CSFP ports or 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports S5700-28TP-LI-AC/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC: 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports |
MAC Address Table | 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting |
VLAN Features | 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping |
Reliability | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
IP Routing | Static route |
IPv6 features | Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type MLDv1/v2 snooping |
Multicast | IGMPv1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics |
QoS/ACL | Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces |
Security | Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH V2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist |
Access Security | DHCP relay, DHCP server, DHCP snooping, and DHCP security |
Lightning Protection | Service interface: 6 kV |
Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client |
Management and Maintenance | iStack (excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches) Virtual Cable Test (VCT) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON eSight and web-based NMS HTTPS System logs and multi-level alarms 802.3az EEE Dying Gasp (excluding battery LAN switches) Device hibernation mode (excluding PWR serials switches, battery LAN switches, S5700-10P-LI, S5700-28X-LI-24S, S5701-28X-LI-24S-AC and S5700-52X-LI-48CS-AC) |
Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP) |
Operating Environment | Long-term operating temperature: 0°C to 45°C Relative humidity: 5% to 95% (non-condensing) |
Input Voltage | AC: Rated voltage range: 100V to 240V, 50/60 Hz, Maximum voltage range: 90V to 264V, 47/63 Hz DC: Rated voltage range: –48V to –60V, Maximum voltage range: –36V to –72V Note: Models supporting PoE do not use DC power supplies. |
Power Socket Position | S5700-10P-LI-AC/S5700-10P-PWR-LI-AC/S5700-28P-LI-AC/S5700-28P-PWR-LI/S5700-28X-LI*/S5700-28X-PWR-LI-AC/S5700-28X-LI-24S /S5700-52P-LI-AC/S5700-52P-PWR-LI/S5700-52X-LI*/S5700-52X-PWR-LI-AC/S5700-28P-LI-BAT/S5700-28P-LI-4AH /S5700-28PLI-24S-BAT/ S5700-28P-LI-24S-4AH/ S5700-28TP-LI-AC /S5700-28TP-PWR-LI-AC/ S5701-28TP-PWR-LI-AC: rear power sockets S5701-28X-LI-24S-AC/S5701-28X-LI-AC/S5700-52X-LI-48CS-AC?front power sockets |
Battery | One slot for lithium battery or lead-acid battery charger module (supported by battery LAN switches) Note |
Battery Type | Internal BAT-4AHA and BAT-8AHA lithium batteries and external lead-acid batteries connected to the lead-acid battery charger module in the battery slot (supported by battery LAN switches) |
Battery Management | Web-based management system used to check the battery status and manage the battery (supported by battery LAN switches) |
Dimensions (W x D x H) | S5700-10P-LI-AC: 250 x 180 x 43.6 |
Power Consumption | S5700-28P-LI-BAT /S5700-28P-LI-4AH < 23W? S5700-28P-LI-24S-BAT /S5700-28P-LI-24S-4AH < 34.1W |
