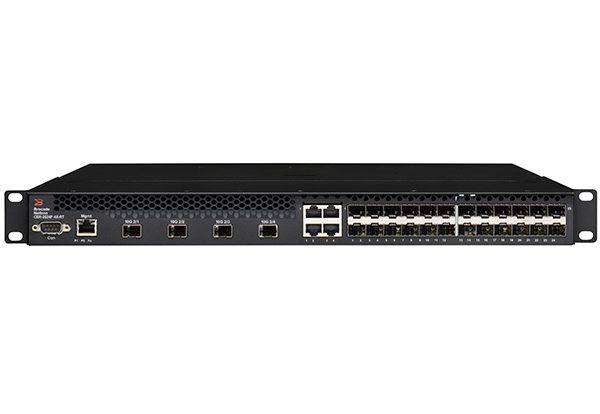

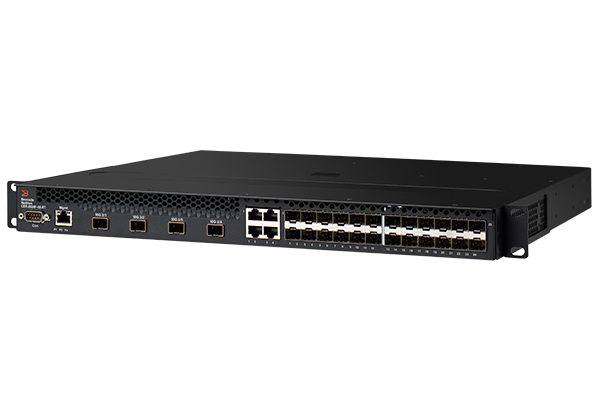

Характеристики: Маршрутизатор Brocade NetIron CER 2024 [BR-CER-2024F-4X-RT-DC]
| Features | CER 2024F-4X-RT |
| Port Density | 24 100/1000 Hybrid Fiber SFP ports with 4?10 GbE ports |
| 10 G Uplinks | Yes (built in) |
| Combination Ports | Yes (4 10/100/1000 RJ45 ports) |
| Forwarding Performance | 192 Gbps |
| Packet Forwaedsing Performance | 101 Mpps |
| Buffering | 128 MB |
| Power Supply Options | Internal AC or DC |
| Power Supply Redundancy | 1+1 |
| Fan Redundancy | M+N |
| AirFlow | Front to back |
| License | |
|---|---|
| BASE | Advanced Layer 2 and 3 functions: • IPv4 routing: RIP, OSPF, IS-IS, and BGP • IPv6 routing: RIPng, OSPFv3, IS-IS for IPv6, and BGP-MP for IPv6 • Virtual routing in non-MPLS environments via Multi-VRF • All classic Layer 2 capabilities • QoS and ACLs • Management via SNMP/CLI • Bundled with base hardware • Connectivity Fault Management (IEEE 802.1ag) and Y.1731 Service OAM |
| ADV_SVCS_PREM (Advanced Services Premium) | All functions in BASE plus: • Multi-Protocol Label Switching (MPLS) • MPLS-based Layer 2 (VLL and VPLS) and Layer 3 (BGP VPNs) VPNs • Provider Bridges (IEEE 802.1ad) and Provider Backbone Bridges (IEEE 802.1ah) • Ethernet Service Instance (ESI) framework • OpenFlow scalability and operational enhancements |
| Dimensions | 17.4 in. W ? 1.7 in. H ? 17.6 in. D (44.3 cm ? 4.4 cm ? 44.8 cm) |
| Key Features | |
| Comprehensive IPv4/IPv6 routing support based on the ExtremeRouting Neltron OS | • High-performance, robust routing using Forwarding Information Base (FIB) programming in hardware • RIP/RIPng, OSPF/OSPFv3, IS-IS/IS-IS for IPv6, and BGP-4/BGP-MP for IPv6 • Secure Multi-VRF routing for supporting virtual routing applications over non-MPLS backbones • VRRP and VRRP-E • 8-path Equal Cost Multi-Path (ECMP) • Up to 1,500,000 IPv4 unicast routes in FIB • Up to 256,000 IPv6 unicast routes in FIB • Connecting IPv6 islands over IPv4 MPLS using IPv6 Provider Edge (6PE) routers • 6VPE enabling IPv6 multitenancy to the edge of the cloud • BFD Holdover for OSPFv2/3 and IS-IS • BFD for Static Routes • BFD for OSPFv3 • ND6 IPv6 Prefix Suppress • IS-IS Graceful Restart Helper Mode • 127-bit IPv6 interface addresses |
| Software-Defined Networking (SDN) | • OpenFlow 1.3: QoS (for metering and enqueue), Group Table (select and fast failover), Q-in-Q (TAG type autorecognition), Active-Standby Controller, IPv6, Transport Layer Security (TLS) 1.2 (controller interface) • Extreme Hybrid Switch Mode OpenFlow • Supports up to 32,000 OpenFlow flows |
| Rich Multicast Support | • IPv4 multicast protocols, including PIM-DM, PIM-SM, and PIM-SSM • IPv6 multicast support, including PIM-SM/SSM and MLD • IGMP v2/v3 routing and snooping support • IGMP static group support • Multicast boundaries to facilitate admission control • PIM and MLD snooping for IPv6 • Up to 6000 multicast groups in hardware • Multicast traffic distribution over Link Aggregation Groups (LAGs) • Efficient egress interface-based replication to maximize performance and conserve buffers • Multicast for MPLS • Multicast ECMP |
| Advanced MPLS Features | • Comprehensive MPLS signaling and path calculation algorithms for both traffic-engineered and non-trafficengineered applications: OSPF-TE, IS-IS-TE, RSVP-TE, and CSPF • MPLS Fast ReRoute (FRR) and hot standby paths for traffic protection • Label Distribution Protocol (LDP) • Advanced MPLS services: IP over MPLS, VLL, VPLS, Layer 3 VPN, and routing over VPLS • BFD for RSVP-TE LSPs • LDP Inbound and Outbound FEC Filtering • RSVP Liberal Bypass LSP Selection • Link Protection Request for RSVP Fast Reroute • RSVP Hello Messages for Neighbor Failure Detection • RSVP TE Link Metric for CSPF Computation • Static Route over RSVP LSP |
| Advanced Carrier-Grade Ethernet Services | • Up to 128,000 MAC addresses • 4000 VLANs/S-VLANs/B-VLANs • Ability to reuse VLAN-ID on each port using the Ethernet Service Instance (ESI) framework • MPLS Layer 2 VPN services • IEEE 802.1ad Provider Bridges • IEEE 802.1ah Provider Backbone Bridges • IEEE 802.1ag Connectivity Fault Management • ITU Y.1731 OAM functions and mechanisms for Ethernetbased networks • Comprehensive set of Layer 2 control protocols: Extreme MRP/MRP-II, VSRP, RSTP, MSTP, and ITU G.8032 Ethernet Ring Protection (ERP version 1 and 2) • Multi-Chassis Trunking (MCT) with support for up to 256 clients (Active/Active mode or Active/Standby mode for Active/Passive access for client ports) • E-LINE (EPL and EVPL), E-LAN, and E-TREE support • Protocol tunneling of Bridge Protocol Data Units (BPDUs) • MEF 9, MEF 14, and MEF 21 certification |
| Support for Link Aggregation Using Either IEEE 802.3ad LACP or Static Trunks | • Up to 12 ports per LAG • Support for single-link Link Aggregation Control Protocol (LACP) • Deep egress buffering for transient bursts in traffic • 64 to 192 MB of buffering, based on configuration • Advanced QoS • Inbound and outbound two-rate, three-color traffic policers with accounting • Eight queues per port, each with a distinct priority level • Multiple queue servicing disciplines: Strict Priority, Weighted Fair Queuing, and hybrid • Advanced remarking capabilities based on port, VLAN, PCP, DSCP, or IPv4 flow • Egress port and priority-based shaping • QoS for management protocols (SSH and Telnet) |
| Comprehensive Hhardware-Based Security and Policies | • Hardware-based Layer 3 and Layer 2 ACLs (both inbound and outbound) with logging • Ability to bind multiple ACLs to the same port • Hardware-based receive ACLs • Hardware-based Policy-Based Routing (PBR) |
| Additional Security Capabilities | • Port-based network access control using 802.1x or MAC port security • Root guard and BPDU guard • Broadcast, multicast, and unknown unicast rate limits • ARP inspection for static entries • Multi-port static ARP and static MAC |
| Advanced monitoring capabilities | • Port- and ACL-based mirroring that enables traffic mirroring based on incoming port, VLAN-ID, or IPv4/ TCP/UDP flow • Hardware-based sFlow sampling that allows extensive Layer 2-7 traffic monitoring for IPv4 and Carrier Ethernet services • ACL-based sFlow support • sFlow support for MPLS LSR and LER interfaces |
| Interface capabilities | • Jumbo frame support up to 9216 bytes • Optical monitoring of SFP and XFP optics for fast detection of fiber faults • UDLD and LFS/RFN support |
| Intuitive, comprehensive status indication via LEDs | • Per-port UP/DOWN/ACTIVITY indicators • FAN tray status • Power supply status |
| Redundancy | • Redundant, hot-swappable AC/DC power supplies at the rear • Removable fan tray with fan redundancy |
| Protocol Specifications | |
| IEEE Compliance | • IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX, 100Base-FX, 100Base-LX • IEEE 802.3z 1000Base-SX/LX • IEEE 802.3ab 1000Base-T • 802.3 CSMA/CD AcCERs Method and Physical Layer Specifications • 802.3ae 10 Gigabit Ethernet • 802.3x Flow Control • 802.3ad Link Aggregation • 802.1Q Virtual Bridged LANs • 802.1D MAC Bridges • 802.1w Rapid STP • 802.1s Multiple Spanning Trees • 802.1x Port-based Network Access Control • 802.1ad Provider Bridges • 802.1ah Provider Backbone Bridges • 802.1ag Connectivity Fault Management (CFM) • 802.1ab Link Layer Discovery Protocol • 802.1ah Provider Backbone Bridging |
| ITU Compliance | • Y.1731 OAM functions and mechanisms for Ethernet • ITU-T G.8032 Ethernet Ring Protection (ERP version 1 and 2) |
| MEF Specifications | • MEF 2 Requirements and Framework for Ethernet Service Protection • MEF 4 Metro Ethernet Network Architecture Framework Part 1:Generic Framework • MEF 6.1 Metro Ethernet Services Definitions Phase 2 • MEF 9 Abstract Test Suite for Ethernet ServiCER at the UNI • MEF 10.1 Ethernet Services Attributes Phase 2 • MEF 11 User Network Interface (UNI) Requirements and Framework • MEF 12 Metro Ethernet Network Architecture Framework Part 2:Ethernet Services Layer • MEF 13 User Network Interface (UNI) Type 1 ImplementationAgreement • MEF 14 Abstract Test Suite for Traffic Management Phase 1 • MEF 15 Requirements for Management of Metro Ethernet Phase 1 Network Elements • MEF 17 Service OAM Framework and Requirements (partial) • MEF 19 Abstract Test Suite for UNI Type 1 • MEF 21 Abstract Test Suite for UNI Type 2 Part 1 Link OAM |
| RFC Compliance | BGPv4 • RFC 4271 BGPv4 • RFC 1745 OSPF Interactions • RFC 1997 Communities and Attributes • RFC 2439 Route Flap Dampening • RFC 2796 Route Reflection • RFC 1965 BGP4 Confederations • RFC 2842 Capability Advertisement • RFC 2918 Route Refresh Capability • RFC 1269 Managed Objects for BGP • RFC 2385 BGP Session Protection via TCPMD5 • RFC 3682 Generalized TTL SecurityMechanism, for eBGP Session Protection • RFC 4273 BGP-4 MIBRFC 4893 BGP Support for Four-octetAS Number Space • RFC 5396 Textual Representation ofAutonomous System (AS) Numbers • RFC 4724 Graceful Restart Mechanism forBGP (helper mode) OSPF • RFC 2328 OSPF v2 • RFC 3101 OSPF NSSA • RFC 1745 OSPF Interactions • RFC 1765 OSPF Database Overflow • RFC 1850 OSPF v2 MIB • RFC 2370 OSPF Opaque LSA Option • RFC 3630 TE Extensions to OSPF v2 • RFC 3623 Graceful OSPF Restart(helper mode) IS-IS • RFC 1195 Routing in TCP/IP and DualEnvironments • RFC 1142 OSI IS-IS Intra-domain RoutingProtocol • RFC 2763 Dynamic Host Name Exchange • RFC 2966 Domain-wide Prefix Distribution • RFC 5120 IS-IS Multi-Topology Support • RFC 5306 Restart Signaling for IS-IS RIP • RFC 1058 RIP v1 • RFC 2453 RIP v2 • RFC 1812 RIP Requirements IPv4 multicast • RFC 1122 Host Extensions • RFC 1112 IGMP • RFC 2236 IGMP v2 • RFC 3376 IGMP v3 • RFC 3973 PIM-DM • RFC 2362 PIM-SM • RFC 4610 Anycast RP using PIM IPv6 core • RFC 2460 IPv6 Specification • RFC 2461 IPv6 Neighbor Discovery • RFC 2462 IPv6 Stateless Address—Auto-Configuration • RFC 4443 ICMPv6 • RFC 4291 IPv6 Addressing Architecture • RFC 3587 IPv6 Global Unicast—Address Format • RFC 2375 IPv6 Multicast AddressAssignments • RFC 2464 Transmission of IPv6 overEthernet Networks • RFC 2711 IPv6 Router Alert Option • RFC 3315 Dynamic Host ConfigurationProtocol (DHCP) for IPv6 IPv6 Routing • RFC 2080 RIPng for IPv6 • RFC 2740 OSPFv3 for IPv6 • draft-ietf-isis-ipv6 Routing IPv6 with IS-IS • RFC 2545 Use of BGP-MP for IPv6 • RFC 6106 Support for IPv6 RouterAdvertisements with DNS Attributes • RFC 4659 BGP-MPLS IP Virtual PrivateNetwork (VPN) Extension for IPv6 • RFC 6164 Using 127-Bit IPv6 Prefixes onInter-Router Links IPv6 Transitioning • RFC 4798 Connecting IPv6 Islands overIPv4 MPLS Using IPv6 Provider Edge Routers • RFC 4659 Transporting IPv6 Layer 3VRFs across IPv4/MPLS backbones (6VPE) MPLS • RFC 3031 MPLS Architecture • RFC 3032 MPLS Label Stack Encoding • RFC 3036 LDP Specification • RFC 2205 RSVP v1 FunctionalSpecification • RFC 2209 RSVP v1 Message ProcessingRules • RFC 3209 RSVP-TE • RFC 3270 MPLS Support ofDifferentiated Services • RFC 3812 MPLS MIB • RFC 4090 Fast Reroute Extensions toRSVP-TE for LSP Tunnels; partial support • RFC 4875 Extensions to RSVP-TE forP2MP TE LSPs • RFC 5443 LDP IGP Synchronization • RFC 5712 MPLS Traffic EngineeringSoft Preemption Layer 2 VPN and PWE3 • RFC 4664 Framework for Layer 2 VirtualPrivate Networks • RFC 4665 Service Requirements forLayer 2 Provider-Provisioned Virtual Private Networks • RFC 4762 VPLS using LDP Signaling•draft-ietf-pwe3-arch PWE3 Architecture • RFC 4447 Pseudowire Setup andMaintenance using LDP • RFC 4448 Encapsulation Methods forTransport of Ethernet over MPLS Networks • RFC 5542 Definitions of TextualConventions for Pseudowire (PW) Management • RFC 5601 Pseudowire (PW) ManagementInformation Base Layer 3 VPN • RFC 2858 Multiprotocol Extensionsfor BGP-4 • RFC 3107 Carrying Label Informationin BGP-4 • RFC 4364 BGP/MPLS IP VPNs draft-ietf-idr-bgp-ext-communities BGPExtended Communities Attribute • RFC 4576 Using LSA Options Bit toPrevent Looping in BGP/MPLS IP VPNs (DN Bit) • RFC 4577 OSPF as the PE/CE Protocol inBGP/MPLS IP VPNs • Draft-ietfidr-route-filter Cooperative RouteFiltering Capability for BGP-4 • RFC 4382 MPLS/BGP Layer 3 VPN MIB General protocols • RFC 791 IP • RFC 792 ICMP • RFC 793 TCP • RFC 1350 TFTP • RFC 826 ARP • RFC 768 UDP • RFC 894 IP over Ethernet • RFC 903 RARP • RFC 906 TFTP Bootstrap • RFC 1027 Proxy ARPRFC 951 BootP • RFC 1122 Host Extensions forIP Multicasting • RFC 1256 IRDP • RFC 1519 CIDR • RFC 1542 BootP Extensions • RFC 1812 Requirements for IPv4 Routers • RFC 1541 and 1542 DHCP • RFC 2131 BootP/DHCP Helper • RFC 3768 VRRP • RFC 854 TELNET • RFC 1591 DNS (client) QoS • RFC 2475 An Architecture forDifferentiated Services • RFC 3246 An Expedited ForwardingPHB • RFC 2597 Assured Forwarding PHBGroup • RFC 2698 A Two-Rate Three-ColorMarker Other • RFC 1354 IP Forwarding MIBRFC 2665 Ethernet Interface MIB • RFC 1757 RMON Groups 1, 2, 3, 9 • RFC 2068 HTTP • RFC 4330 SNTP • RFC 2865 RADIUS • RFC 3176 sFlow • RFC 2863 Interfaces Group MIB • Draft-ietf-tcpm-tcpsecure TCPSecurity draft-ietf-bfd-base BidirectionalForwarding Detection (BFD) • RFC 2784 Generic RoutingEncapsulation (GRE) • RFC 4741 NETCONF (Partial) • RFC 4087 IP Tunnel MIB • RFC 4133 Entity MIB • RFC 5676 Definitions of Managed Objects for Mapping SYSLOG Messages to SNMP Notifications |
| Network Management | • Integrated industry-standard Command Line Interface (CLI) • sFlow (RFC 3176) • Telnet • SNMP v1, v2c, v3 • SNMP MIB II • RMON • Entity MIB (Version 3) |
| Element Security Options | • AAA • RADIUS • Secure Shell (SSH v2) • Secure Copy (SCP v2) • HTTPs • TACACS/TACACS+ • Username/Password (Challenge and Response) • Bi-level Access Mode (Standard and EXEC Level) • Protection against Denial of Service attacks, such as TCP SYNor Smurf attacks |
| Environmental | Temperature • Operating: 0°C to 40°C (32°F to 104°F) • Non-operating: –25°C to 70°C (–13°F to 158°F) Humidity • Relative: 5% to 90% at 40°C (104°F), non-condensing • Non-operating: 95% maximum relative humidity, non-condensing Altitude • Operating: 10,000 ft (3048 m) • Non-operating: 15,000 ft (4500 m) maximum |
| Safety Agency Approvals | • CAN/CSA-C22.2 No. 60950-1-3 • UL 60950-1 • IEC 60950-1 • EN 60950-1 Safety of Information Technology Equipment • EN 60825-1 Safety of Laser Products—Part 1:Equipment Classification, Requirements and User’s Guide • EN 60825-2 Safety of Laser Products—Part 2:Safety of Optical Fibre Communication Systems |
| Electromagnetic Emission | • ICES-003 Electromagnetic Emission • FCC Class A • EN 55022/CISPR-22 Class A/VCCI Class A • AS/NZS 55022 • EN 61000-3-2 Power Line Harmonics • EN 61000-3-3 Voltage Fluctuation and Flicker • EN 61000-6-3 Emission Standard (Supersedes: EN 50081-1) |
| Immunity | • EN 61000-6-1 Generic Immunity and Susceptibility; this supersedes EN 50082-1 • EN 55024 Immunity Characteristics. This supersedes: • EN 61000-4-2 ESD • EN 61000-4-3 Radiated, radio frequency, electromagnetic field • EN 61000-4-4 Electrical fast transient • EN 61000-4-5 Surge • EN 61000-4-6 Conducted disturbances induced by radio-frequency fields • EN 61000-4-8 Power frequency magnetic field • EN 61000-4-11 Voltage dips and sags |
| Telco NEBS/ETSI | • Telcordia GR-63-CORE NEBS Requirements: Physical Protection • Telcordia GR-1089-CORE EMC and Electrical Safety • Telcordia SR-3580 Level 3 • ETSI ETS 300-019 Physical Protection: • Part 1-1, Class 1.1, Partly Temperature Controlled Storage Locations • Part 1-2, Class 2.3, Public Transportation • Part 1-3, Class 3.1, Temperature Controlled Locations (Operational) • ETSI ETS 300-386 EMI/EMC |
| Power and Grounding | • ETS 300 132-1 Equipment Requirements for AC Powered Equipment Derived from DC Sources • ETS 300 132-2 Equipment Requirements for DC Powered Equipment • ETS 300 253 Facility Requirements |
| Physical Design and Mounting | Rack mount 19-inch rack mount supporting rackscompliant with: • ANSI/EIA-310-D • ETS 300 119 • GR-63-CORE Seismic Zone 4 |
| Environmental Regulatory Compliance | • EU 2002/95/EC RoHS • EU 2002/96/EC WEEE |
